Choose the services your assembly needs and request a quote.

01Surface Mount

Surface Mount includes automated solder paste inspection before placement and MIRTEC automated optical inspection (AOI) after reflow.

  • Three SMT lines with automated solder paste inspection before placement
  • Fine-pitch, BGA, and 0201 placement
  • Separate lead-free (RoHS) and leaded workflows
  • MIRTEC automated optical inspection (AOI) after reflow

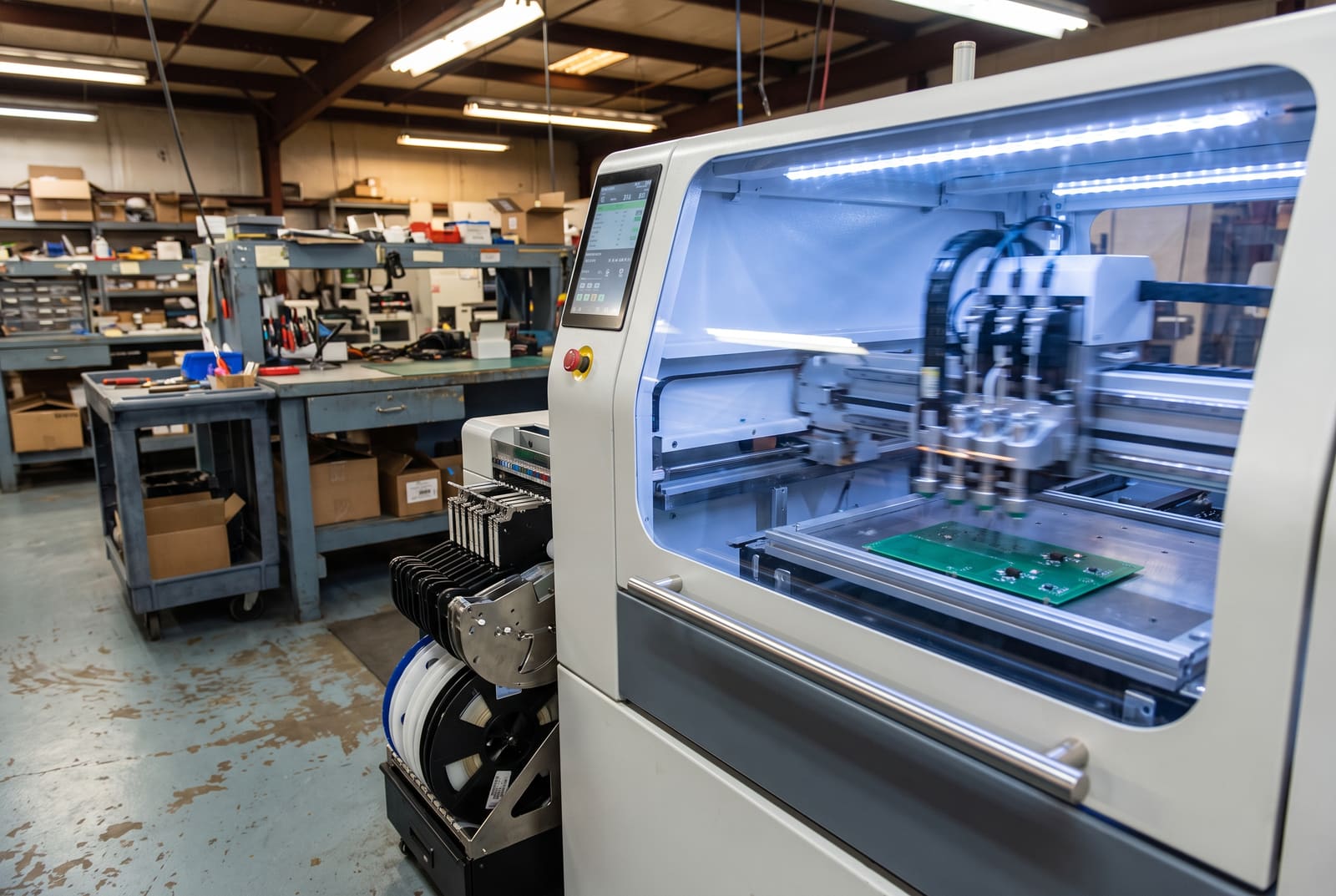

Surface mount line at GC Controls: solder paste printer and pick-and-place machine
FIG. 01 · SMT LINEGREENE, NY

Request a Surface Mount quote

02Through Hole

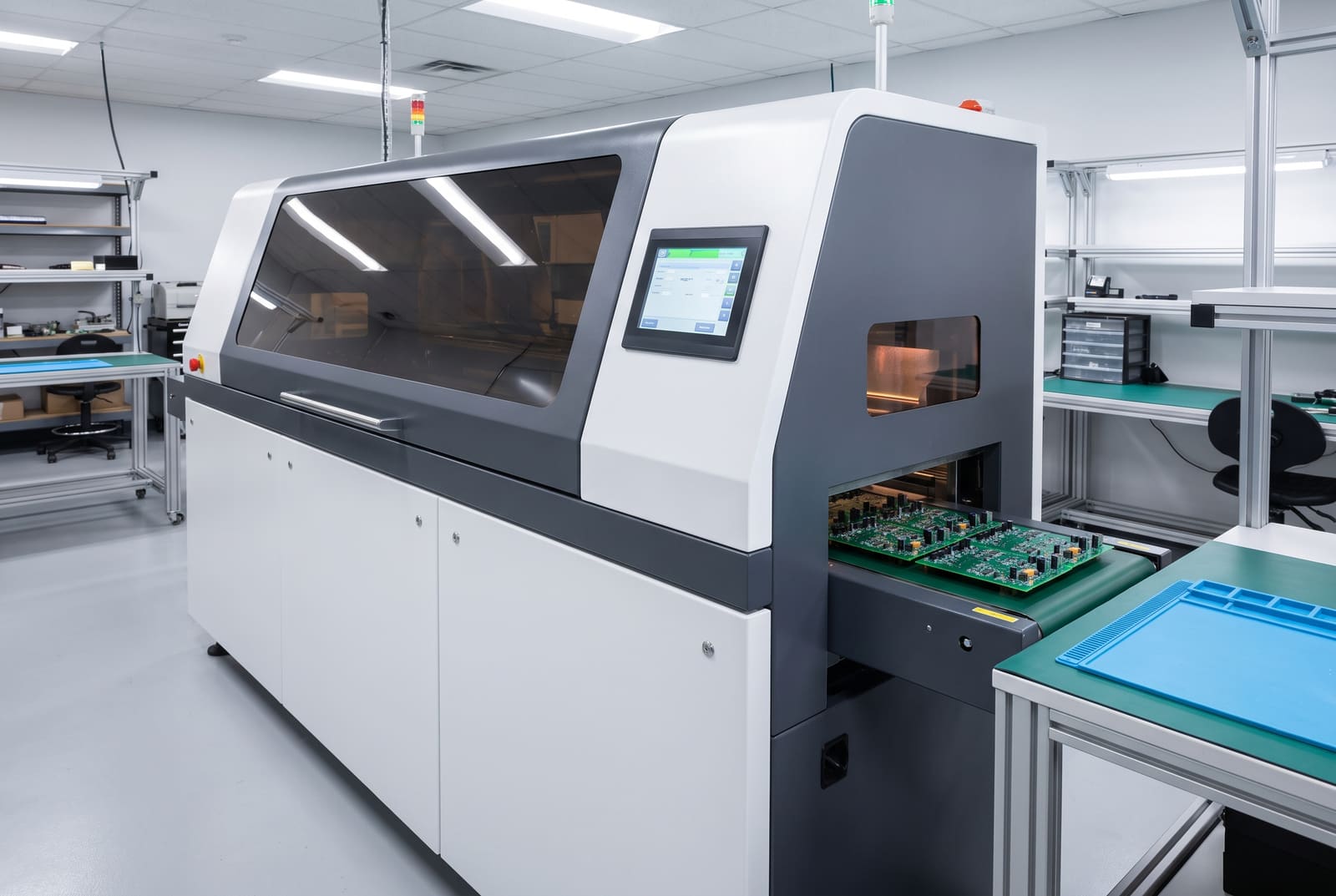

Through Hole assembly uses wave or selective soldering. Assemblies receive a deionized (DI) water wash after wave soldering.

  • Multiple wave solder machines
  • Selective soldering
  • Deionized (DI) water wash after wave soldering

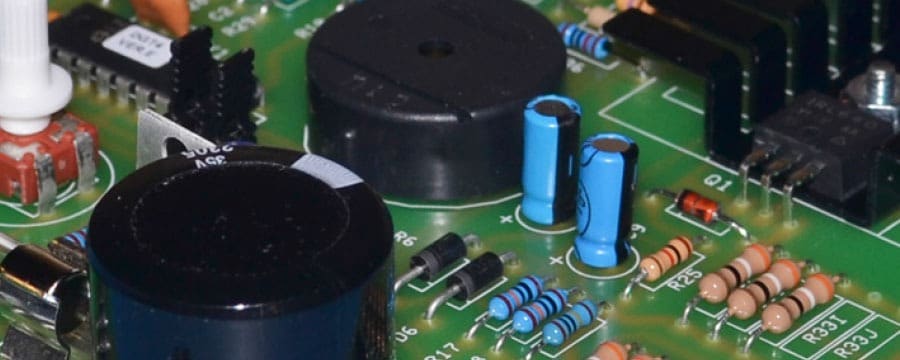

Through-hole components soldered on a printed circuit board assembled at GC Controls
FIG. 02 · THROUGH HOLE ASSEMBLYGREENE, NY

Request a Through Hole quote

03Wire Harness

Wire harnesses and cable assemblies built to your prints.

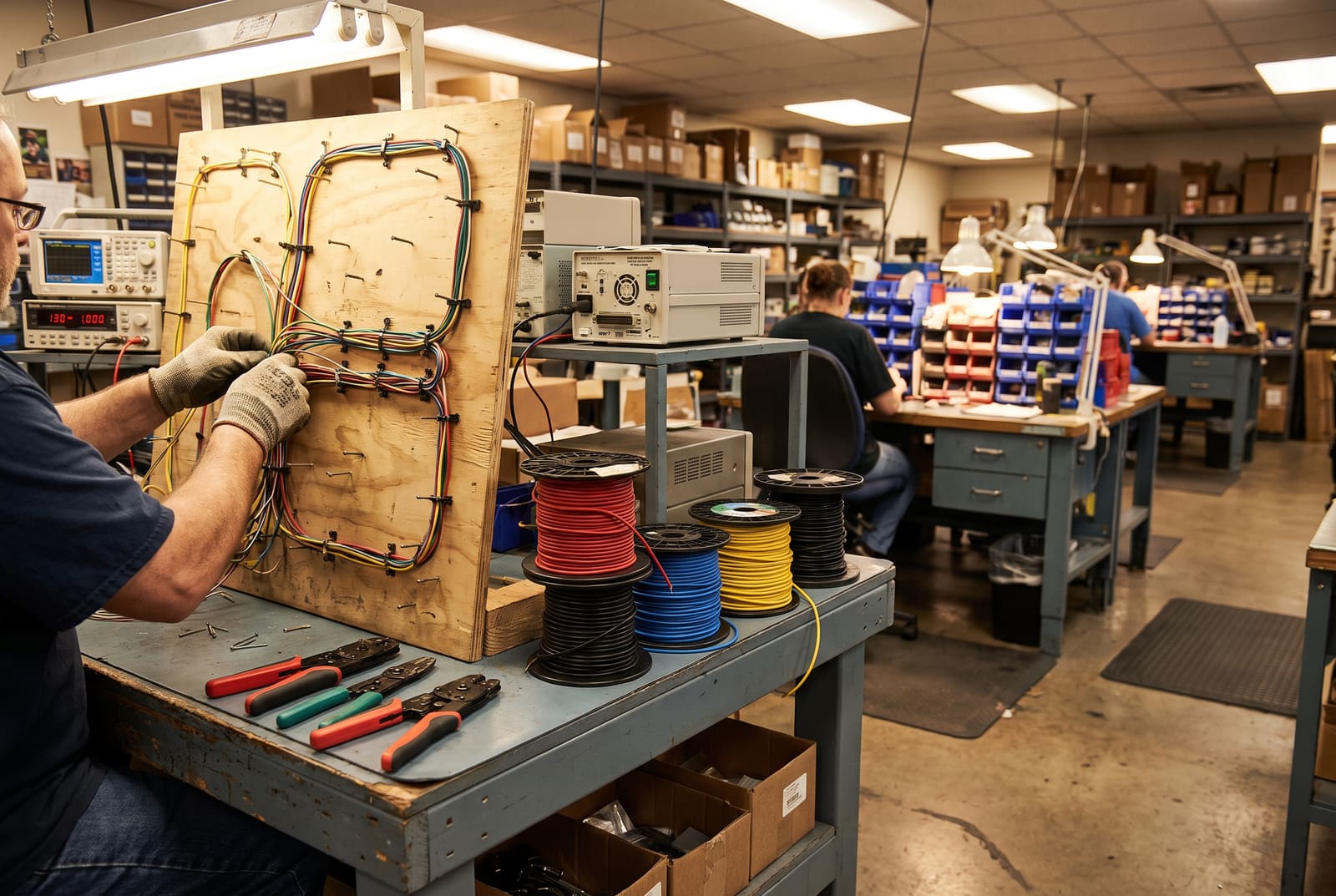

Wire harness laid out on a build board with numbered work-instruction callouts
FIG. 03 · WIRE HARNESS ASSEMBLY BOARDGREENE, NY

Request a Wire Harness quote

04Complete Build

We integrate boards, harnesses, and enclosures into complete builds.

  • Board, harness, and enclosure integration
  • Metal and plastic enclosures
  • Custom test fixtures designed and built in-house

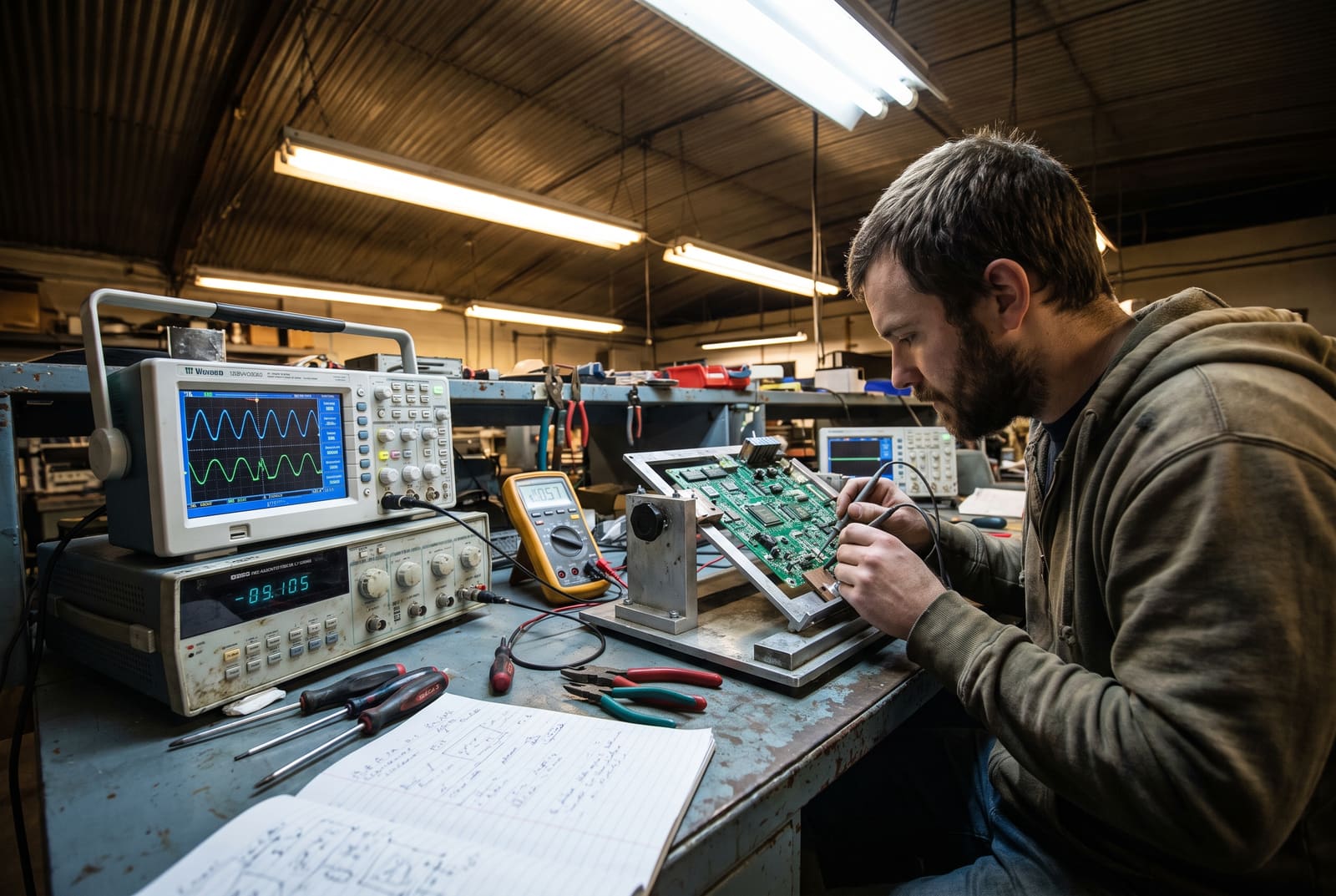

  • Functional testing to your specification when your order includes it

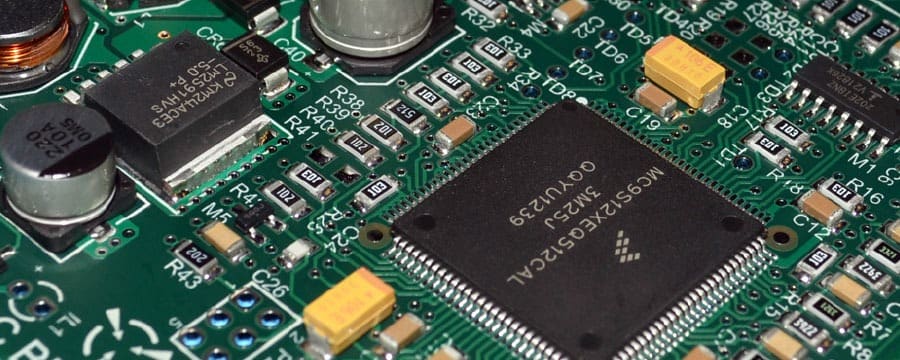

Assembled printed circuit board built at GC Controls, detail
FIG. 04 · ASSEMBLED BOARD DETAILGREENE, NY

Request a Complete Build quote

05Flex Circuit

Flex circuits assembled for your build.

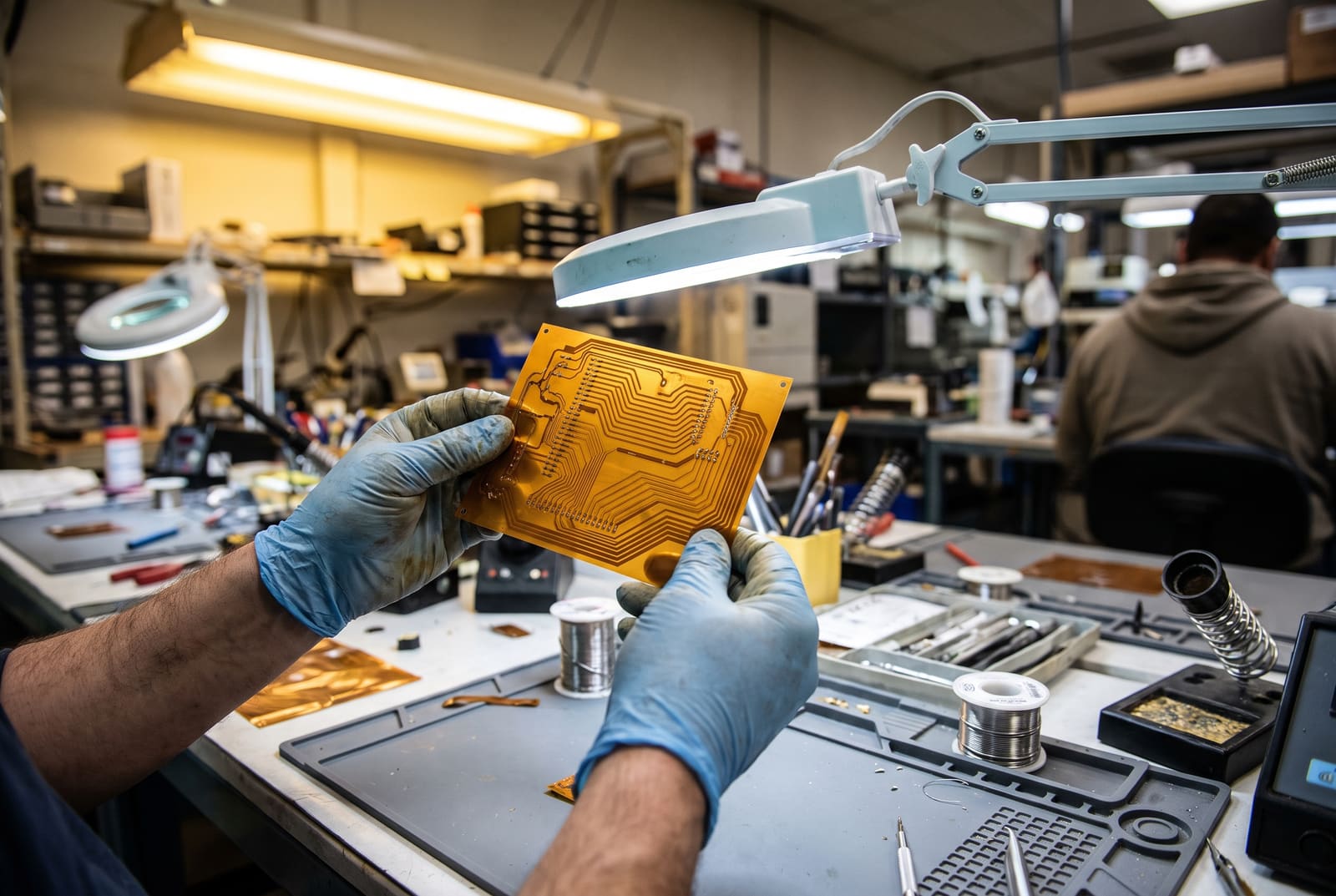

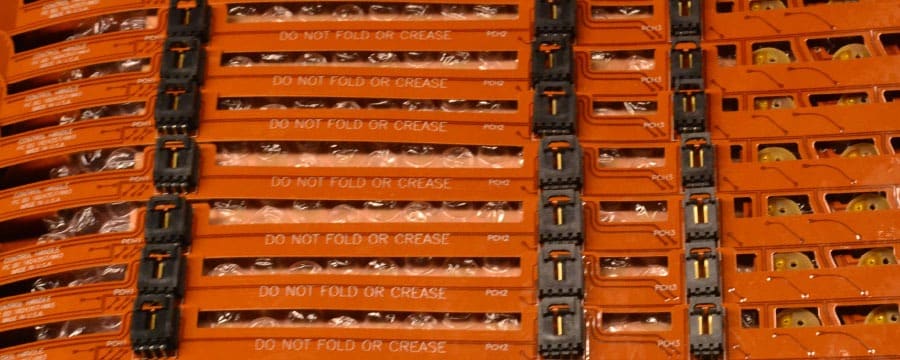

Flexible printed circuits assembled at GC Controls
FIG. 05 · FLEX CIRCUITSGREENE, NY

Request a Flex Circuit quote

06Conformal Coat

Conformal Coat options for your assemblies include acrylic, urethane, and silicone.

  • Acrylic, urethane, and silicone coating options
  • UV or air cure

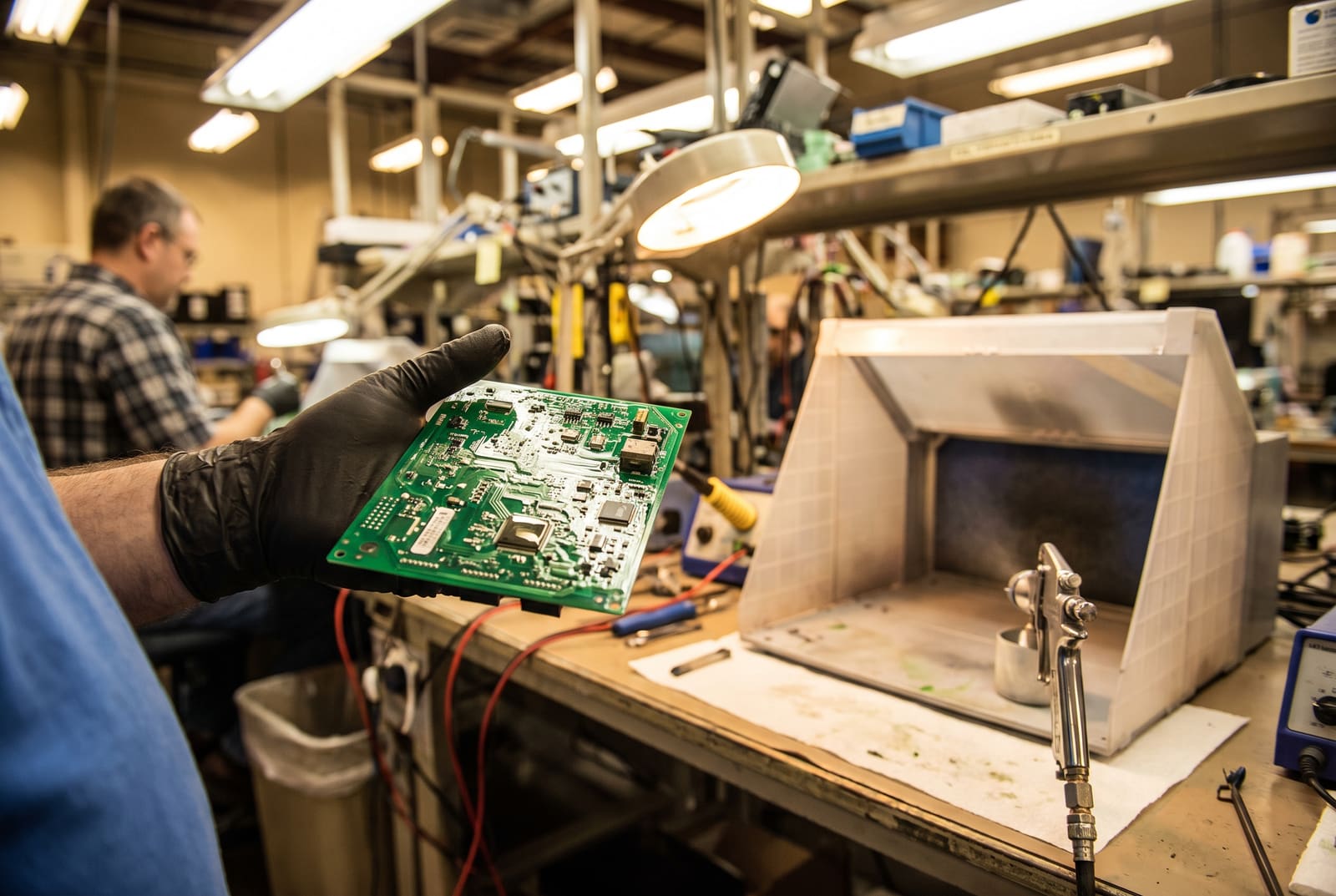

Conformal-coated circuit board assembled at GC Controls
FIG. 06 · CONFORMALLY COATED BOARDGREENE, NY

Request a Conformal Coat quote

07Potting & Encapsulation

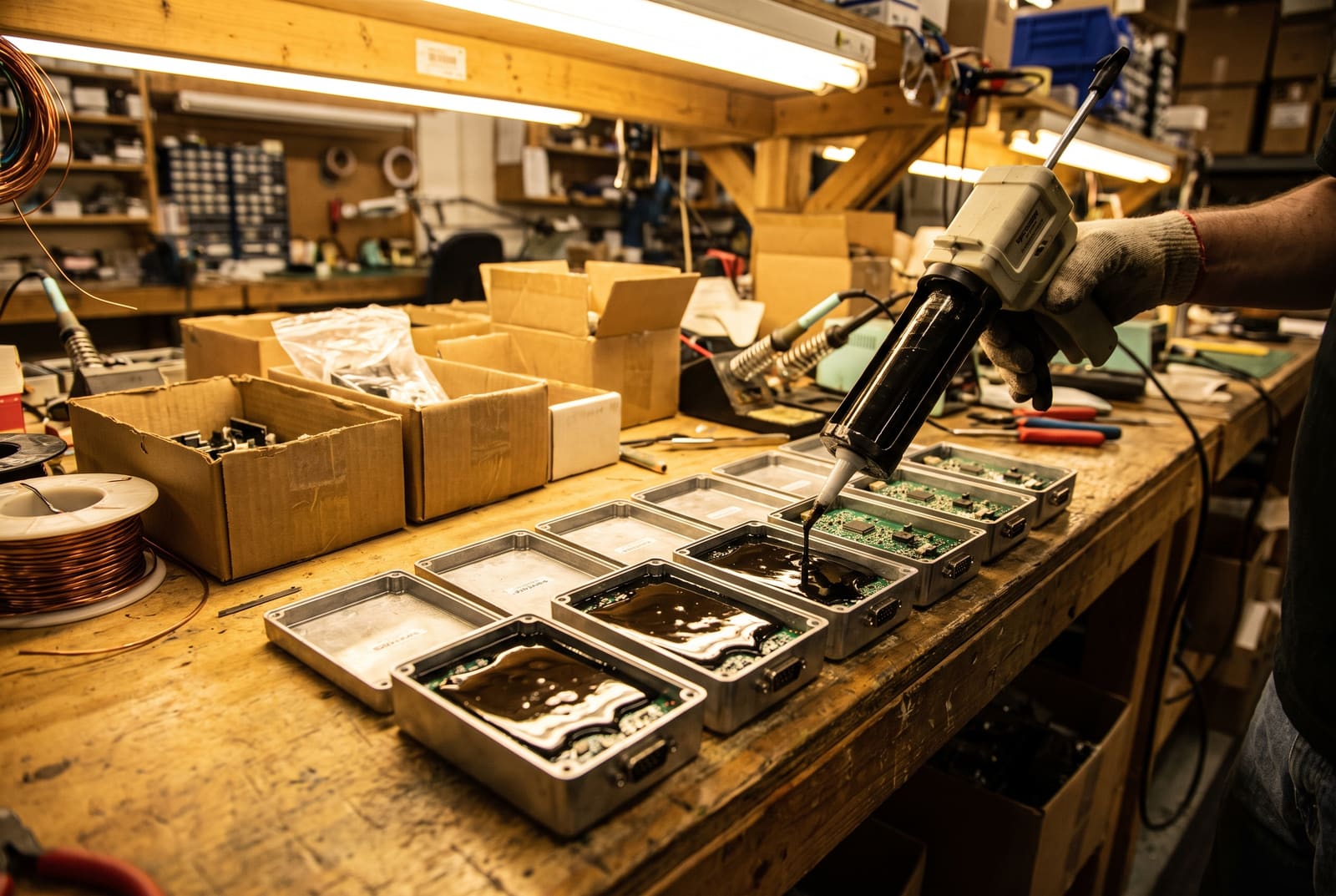

Potting & Encapsulation with two-part epoxies, urethanes, and silicones.

  • Two-part epoxies, urethanes, and silicones
  • Vacuum degassing

Request a Potting & Encapsulation quote
